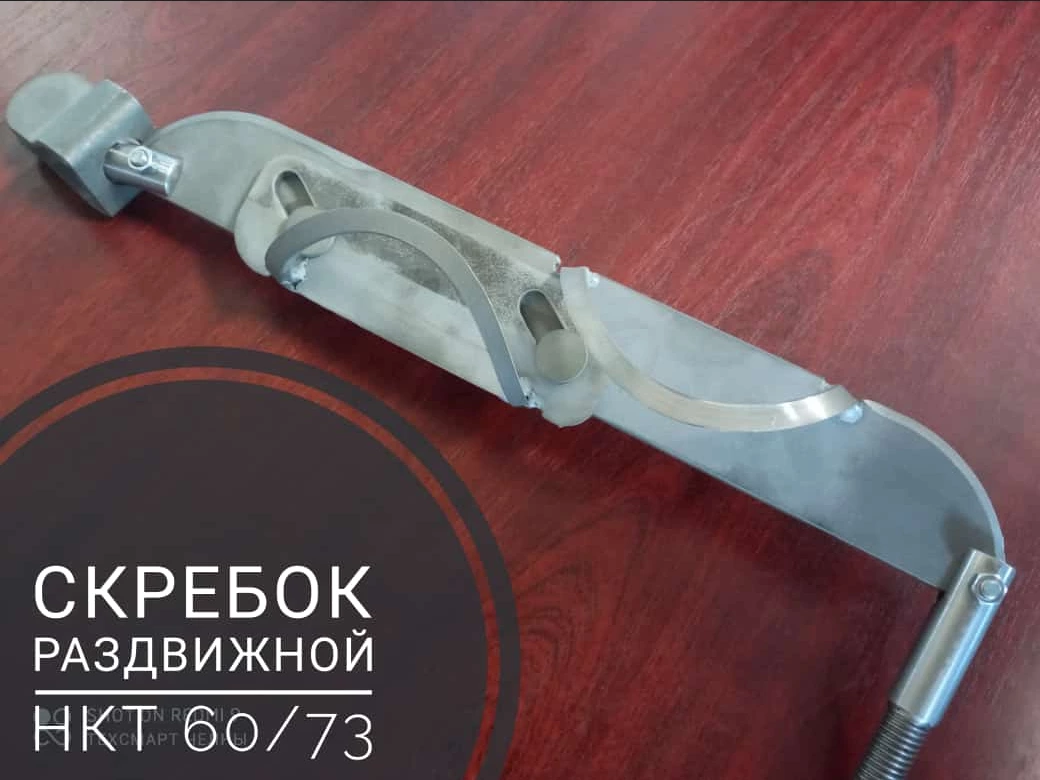

Smarts of sliding NKT60 and NKT73

The scrapers of the sliding NKT60 and NKT73 are designed for deParafinization (cleaning the NCT column) from asphaltosmol paraffin deposits of APOs with medium and small morons, including in inclined wells with invadinometry up to 45 degrees from the vertical. The effectiveness of cleaning the cutting scraper favorably differs from static blade and milling scrains in that for one trigger operation, the scraper cuts the maximum possible working diameter of the passage hole in the TCT. That is why the sliding scraper is most effective when cutting soft paraffins.

Application

Legal scrapers of the production of NPF Tech Smart LLC are analogues of such scrains as a petal scraper, an “Usin” scraper, sliding scrapers of other manufacturers.

Scrapers of NPF LLC Techsmart are suitable for use on the installations of wells of wells of the following types: UDS, UDS, UDS-3000T, UDS-1M, UK-NNT, Padus, PADA-3M, DSA-18, MDS-010, MDS- 3000, MDS-4000, Suleimanova winch.

Depending on the condition and requirements of the well fund, you can choose the most optimal layout of the scraper for dearafinization. The scrains of the sliding NKT60 and NKT73 can be equipped with cargo with weighting with diameters of 28, 32, 36, 38, 42mm.

The weight of the scraper, depending on the cargo, is from 8.5 kg to 19 kg.
The overall length of the sliding scraper assembled with the load is from 1350 mm to 1650 mm

The cargo-hearing can be made in two types: steel or lead.

The lead cargo in comparison with a steel load has a large weight with a lower overall length, and therefore the need to use multi -section lubricators with a length of more than 2000 mm disappears.

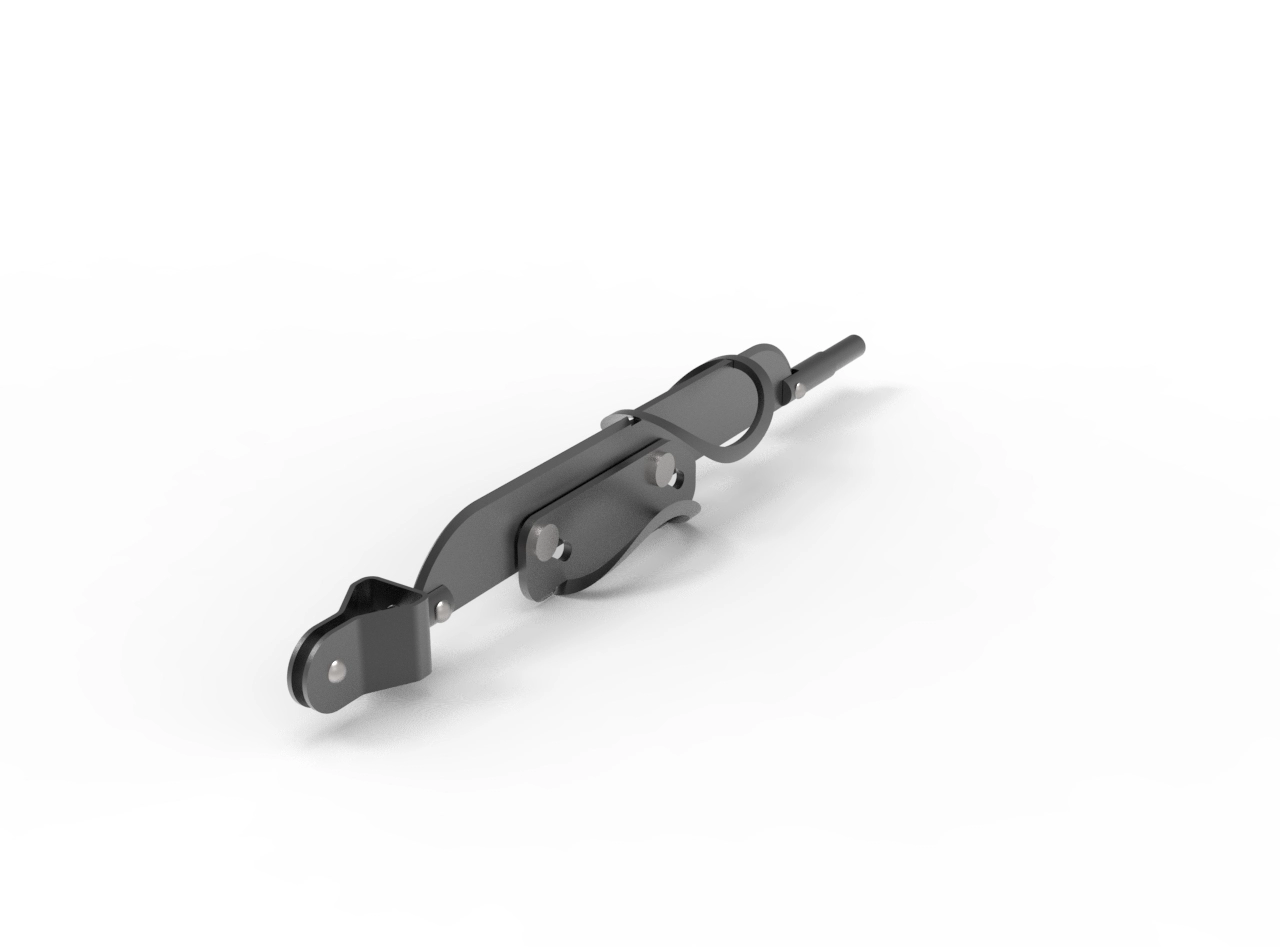

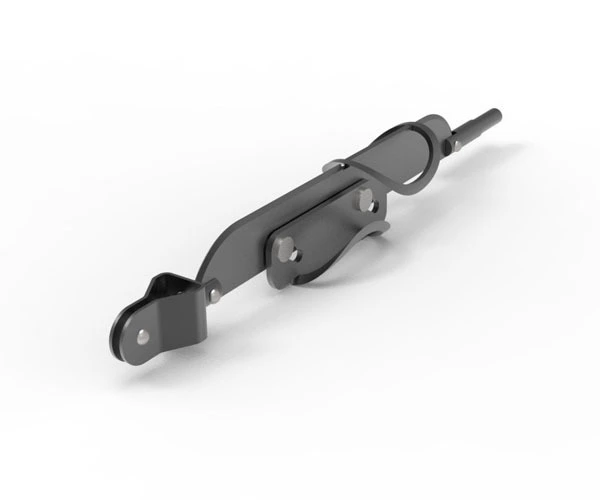

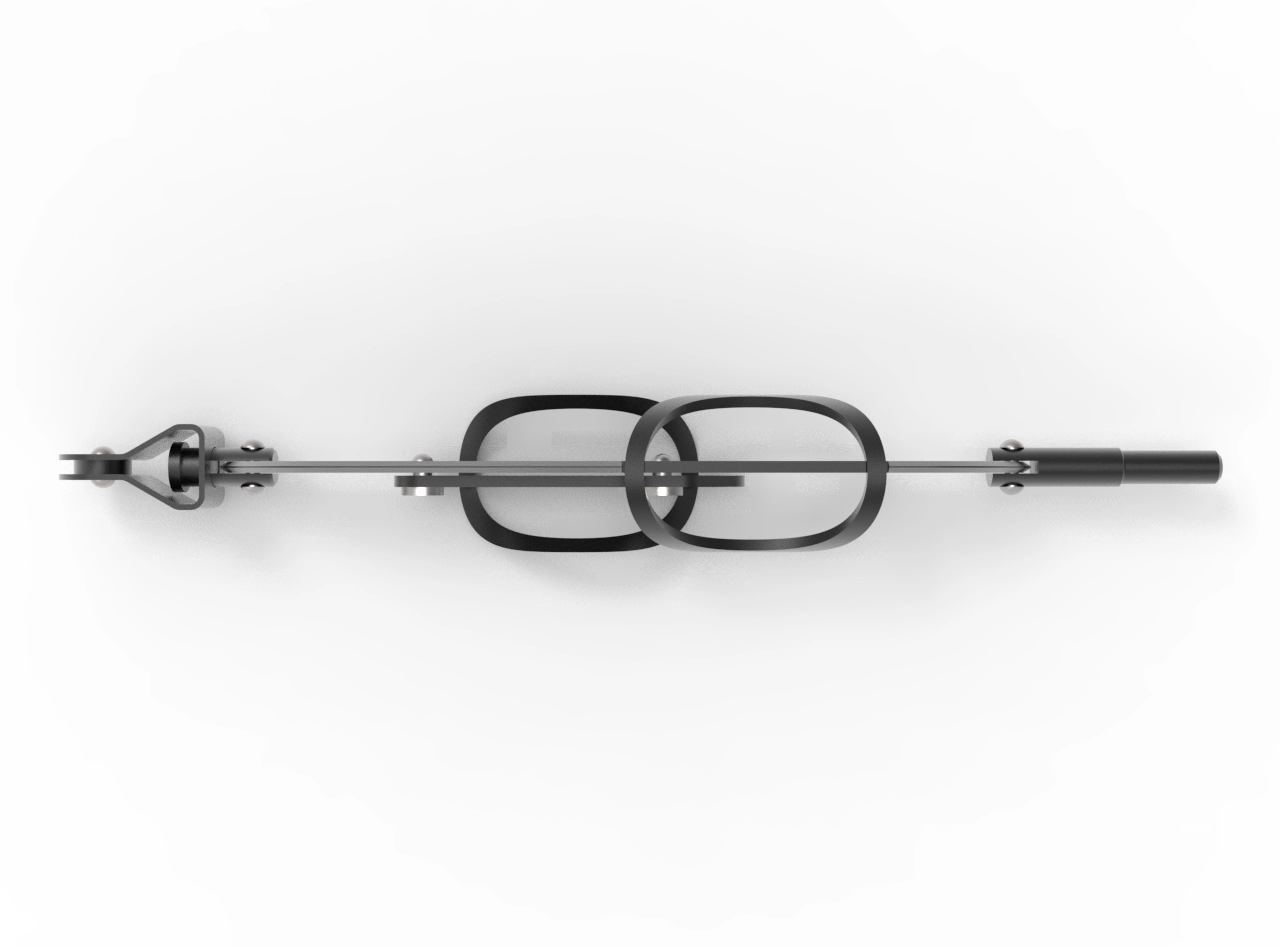

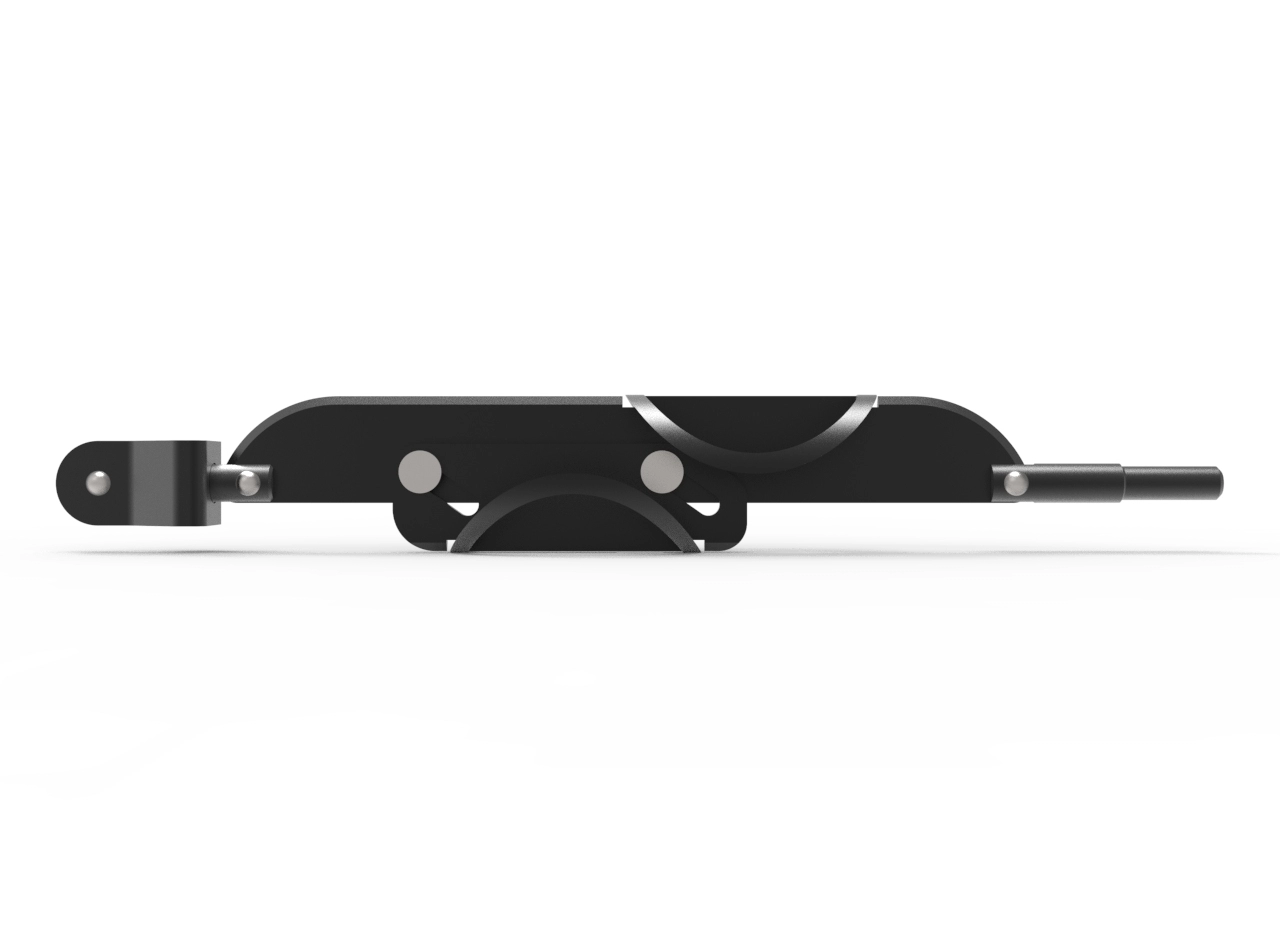

A sliding scraper assembly with a load - a weighting agent drops into the well below the cleaning interval. At the same time, the knives fold, maximizing the diameter of the scraper and facilitating the descent. After passing the scraper down to the required depth, the detachment of the detonation begins the rise of the scraper. When lifting the knives, the scraping, clinging to paraffins, moves apart to the working position. The open knives, moving up the scraper, cleans the NCT.
 The diameter of the knives in the working position is calculated taking into account the necessary clearance between the knives and the walls of the pipe. For NCT 73 - a diameter of knives 56 mm, for NCT 60 - a diameter of 44 mm. Thanks to this, jamming is excluded during cleaning, but at the same time, already during the first passage in most cases, the passing diameter of the TCT increases to the maximum possible working condition of the oil -containing fluid duct.
